GDS + MDS Series Precision Gear Dosing Spray System

2026-03-20 24

The 'GDS' modular and flexible adhesive application system is an exceptional choice for achieving precise and uniform adhesive application in processes with strict dosing requirements. Its advanced, flexible technology allows for ultra-thin, continuous adhesive application with minimal waste, significantly reducing costs and improving efficiency.


The modular design of the 'GDS' system offers unparalleled versatility, enabling it to be easily configured to meet the unique needs of a wide range of materials. Whether you are working with paper, automotive parts, foam products, textiles, fabrics, carpets, labels, non-wovens, or other flexible substrates, the 'GDS' system can be tailored to provide optimal adhesive application results.


The system's spray modes can be adjusted to accommodate different adhesive types, viscosities, and application patterns, ensuring that you achieve the desired adhesive bond strength and appearance on your products. With its precise control and consistent performance, the 'GDS' modular and flexible adhesive application system is an invaluable asset for any manufacturing process that requires high-quality adhesive application.



Features

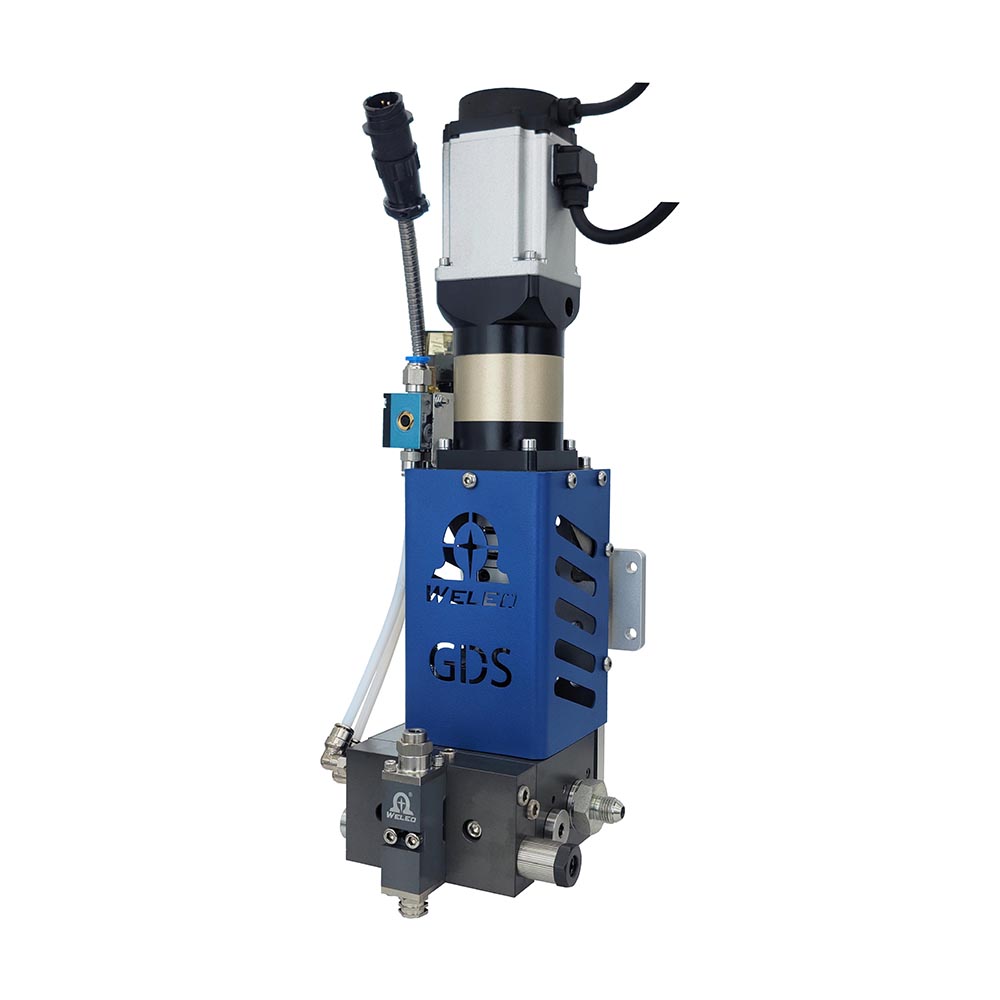

GDS Gear Dosing Spray System

"GDS" platform combines servo motor with gear pump

Suitable for high and low viscosity adhesives

GDS system platform quick change multiple spray pattern

Independent opeartion or connected with an existing melter

Platform can be customized with multiple configuration several servo control

Suitable for industrial robots, axis platform and online installation


MDS Series Multiple Dispening System

Integrated module kit and glue supply barrel have independent temperature control, effectively fluidity of glue.

Can be changer module kit spray different patterns

System Buit-in glue dispensing pattern control

Slim body can be installed anywhere platform


GDS+MDS Series

MDS series equipped with HMI touch screen control

The MDS+GDS dosing gear pump spray gun system will not be affected by the pressure difference between the length of the hose and adhesive viscosity

MDS can be used with both heated and non-heated materials. Put 300ml cartridge adhesive into barrel and use it directly without causing waste.

300ml cartridge in the MDS barrel can display the low level through the HMI screen.

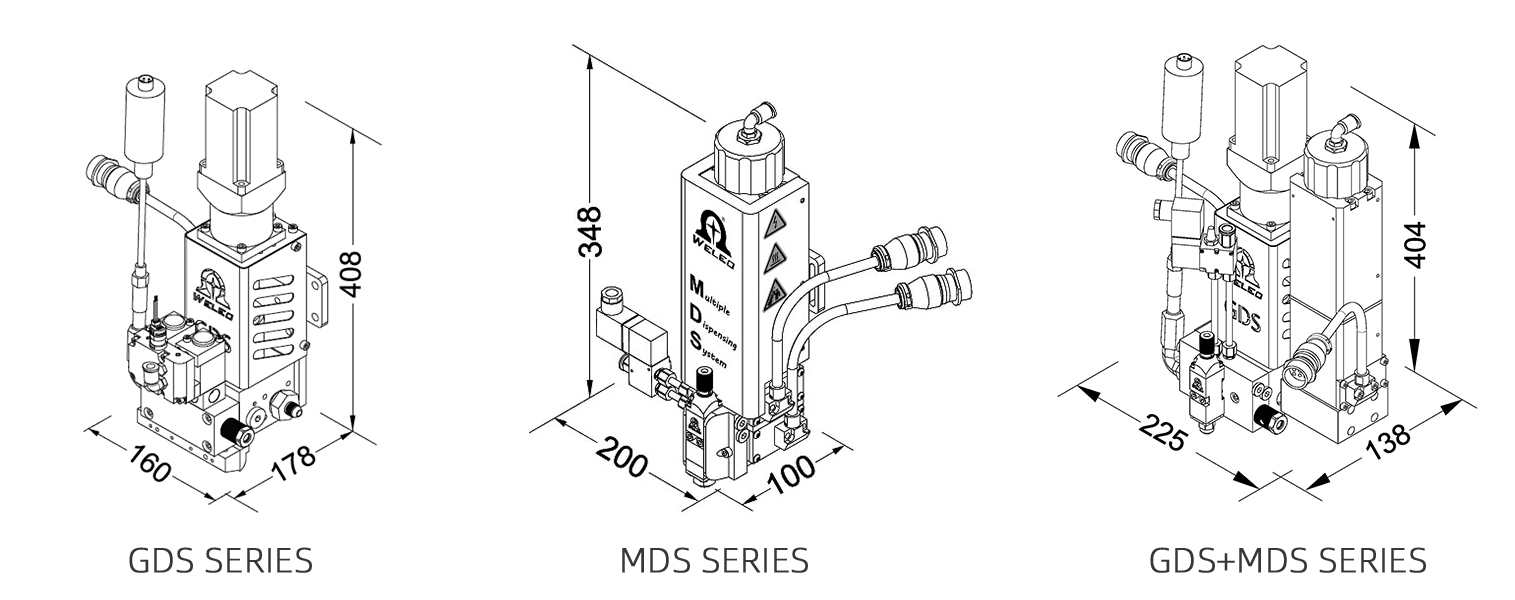

Dimension

1760954296459049

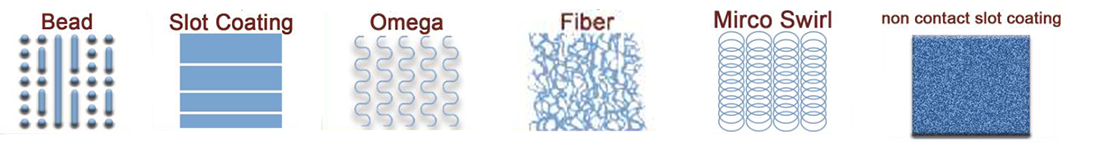

Optional glue spraying pattern

1760953933196882
