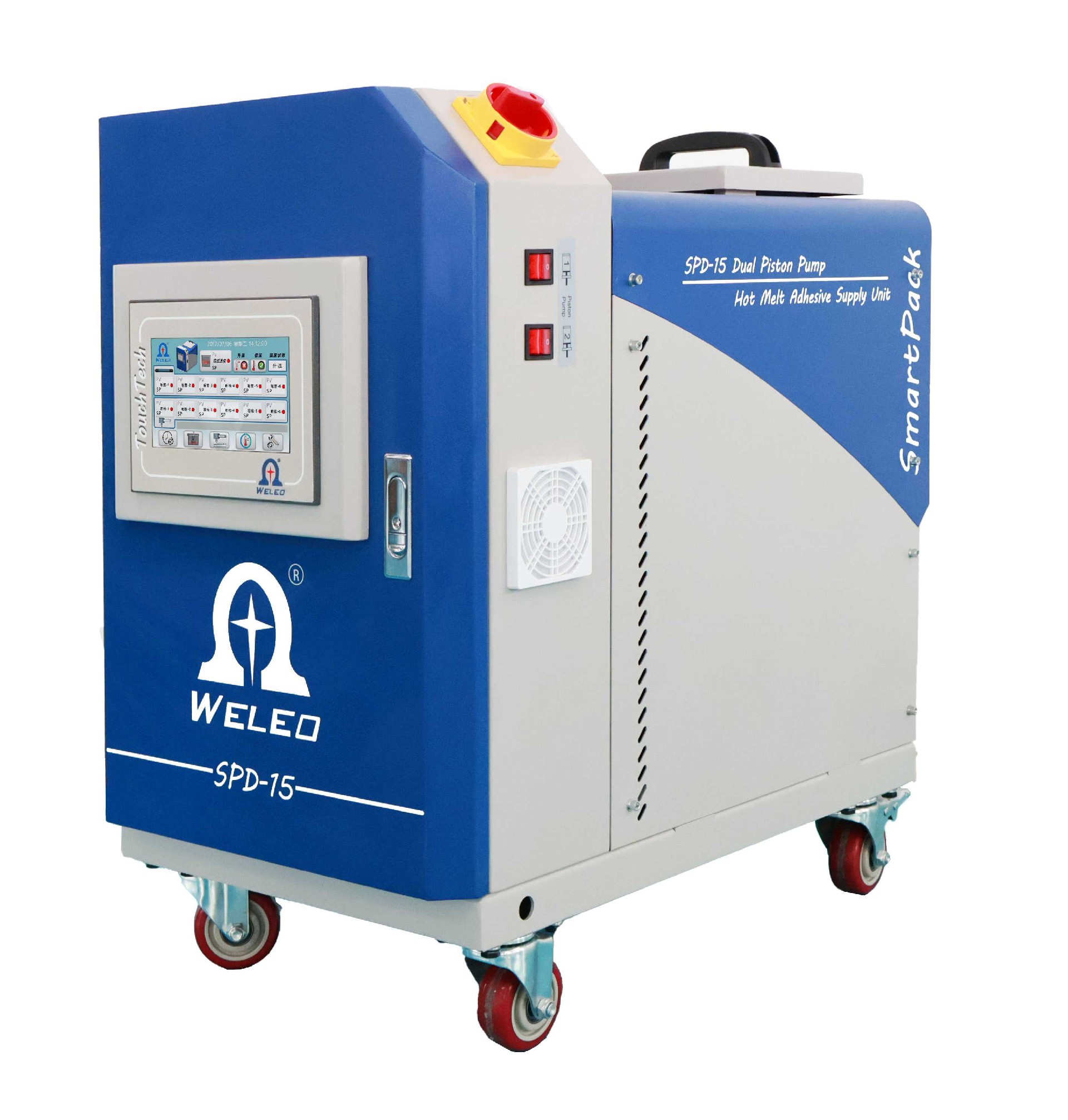

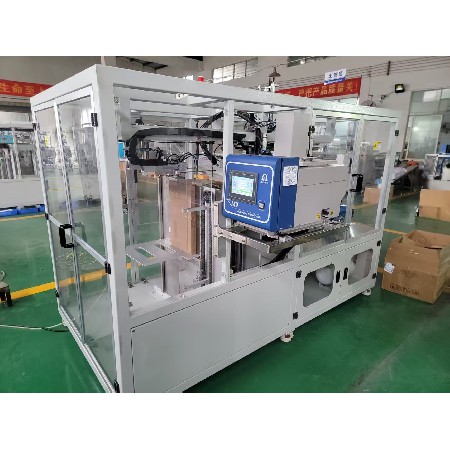

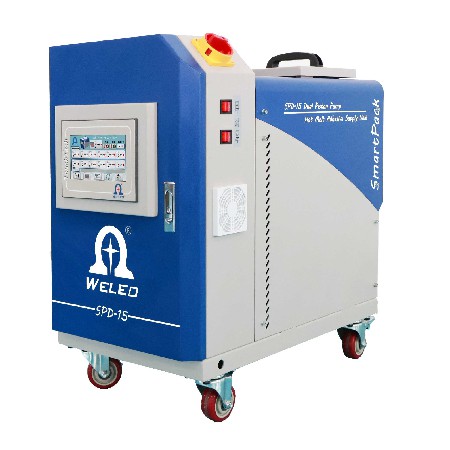

The TouchTech live pump hot melt glue machine is tailored for paper packaging. Its modular design supports 2-6 hot melt hoses, aligning with piston pump flow needs for precise glue control in processes like corrugated paper laminating and box pasting. Suitable for carton sealing, hardcover book binding, and gift box packaging, it ensures even glue lines at high speeds. Features include coated with durable teflon tank, a 7-inch TouchTech HMI for temperature adjustment and fault diagnosis, space-saving design, and optional auto-feeding for 24hr production with 99.8% glue clean, cutting manual intervention by 35%.

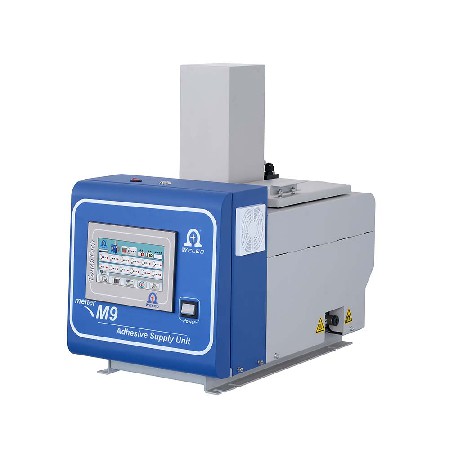

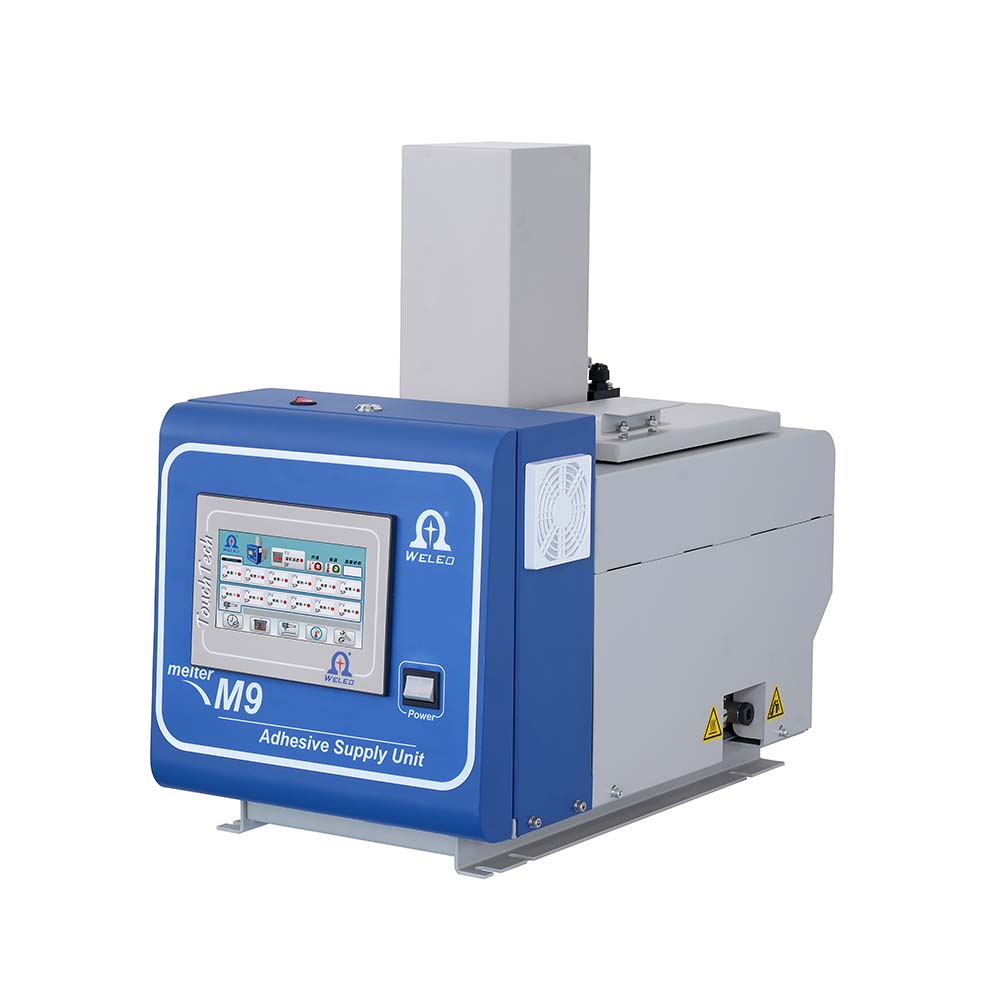

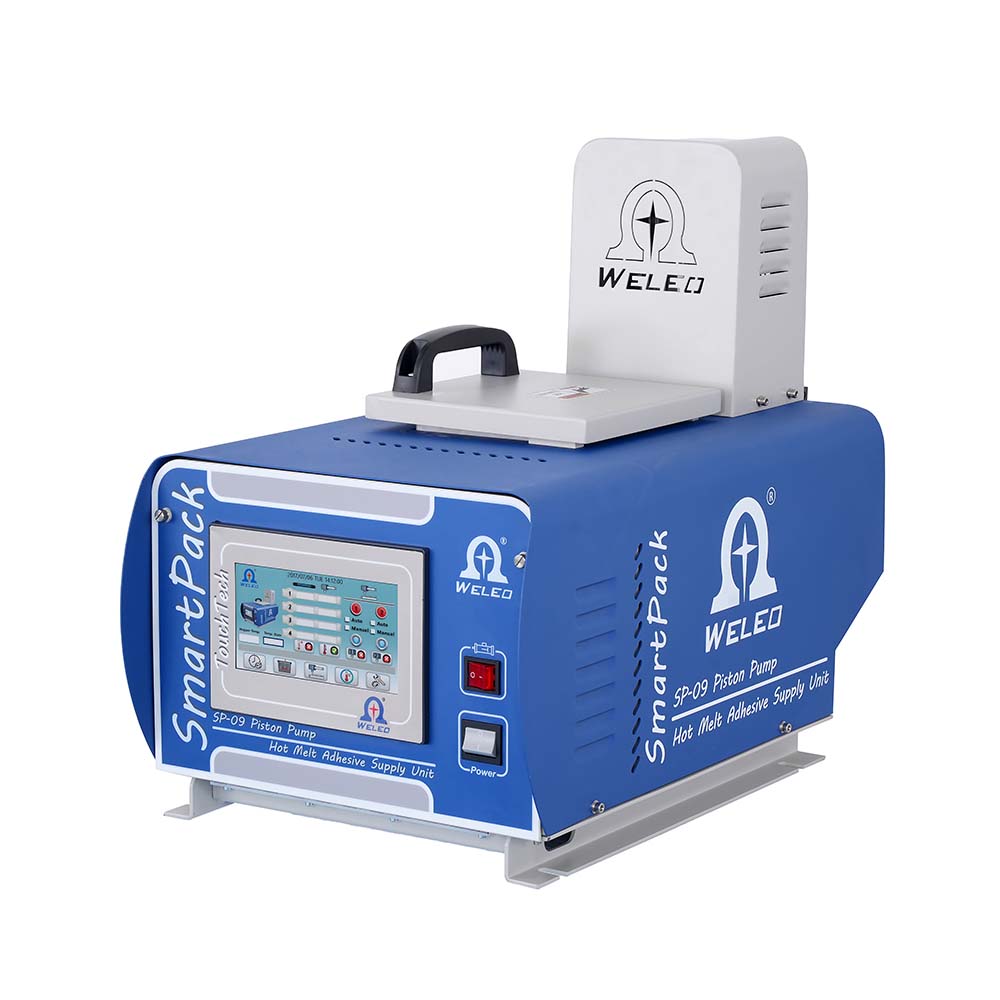

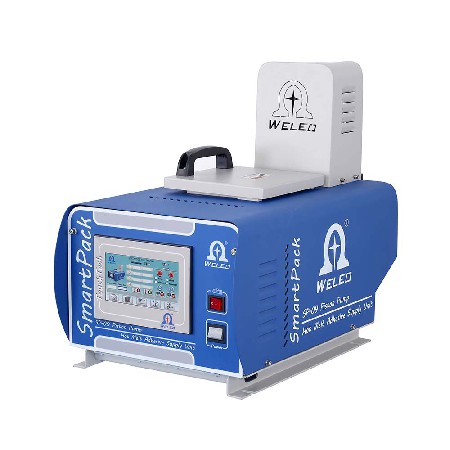

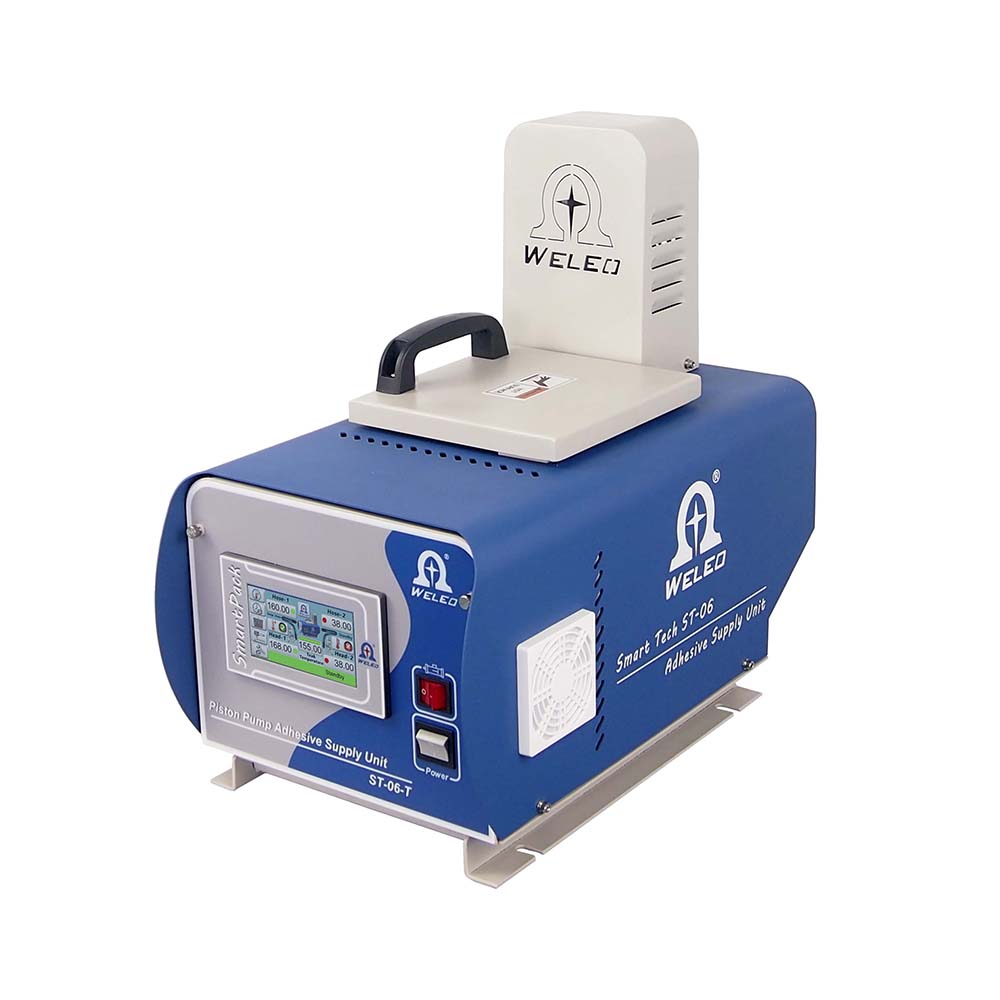

| Melter Mode | ST-06 | SP-09 | M9-6 |
| Tank Capacity | 6kg | 9.8kg | 9kg |
| Melt Rate (per hour) (Dependent on adhesive ) | 5.3kg/hr | 8.5kg/hr | 8.5kg/hr |
| Number of Hose / Head | 2 | 3 | 4 |
| Max. Wattage per Hose/Head | |||
| 2 Hose/Head | 4000W | 4000W | 4000W |
| 4 Hose/Head | N/A | 8000W | 8000W |
| 6 Hose/Head | N/A | N/A | 8000W |
| Size of HMI Screen | 7" inch | ||
| Type of Sensor | Platinum PT100 < Ni120 / NTC / FE-KO (Option)> | ||
| Number of Patten Control (option) | 2 | 2/4 | 2/4 |
| Working Viscosity (Centipoise) | 1000-50000pcs | ||
| OperatingTemperature | |||
| Pump Ratio | 12:1 | 16:1 / 20:1 | 16:1 |
| Adhesive delivery rate | 0.9kg | 1.1kg / 2.6kg' | 1.1kg |
| Operating Glue Pressure | 1000psi | 1000psi | 1000psi |
| Pressure control valve | Mechanical Relief Valve | ||
| Electrical Voltage (Standard) | 220 VAC 1PH 60Hz | ||
| Electrical Voltage (Option) | 380 VAC 3PH+N 60Hz | ||
| Net Weight | 37kg | 53kg | 61kg |
| Dimensions (L x W x H) | 600x311x505 | 675x366x525 | 645x340x586 |
| Ambient Temperature | -5-70°C | ||
| Unit Wattage | 2KW | 2.4kw | 2.4kw |
● Enhanced design maximizes production line space utilization

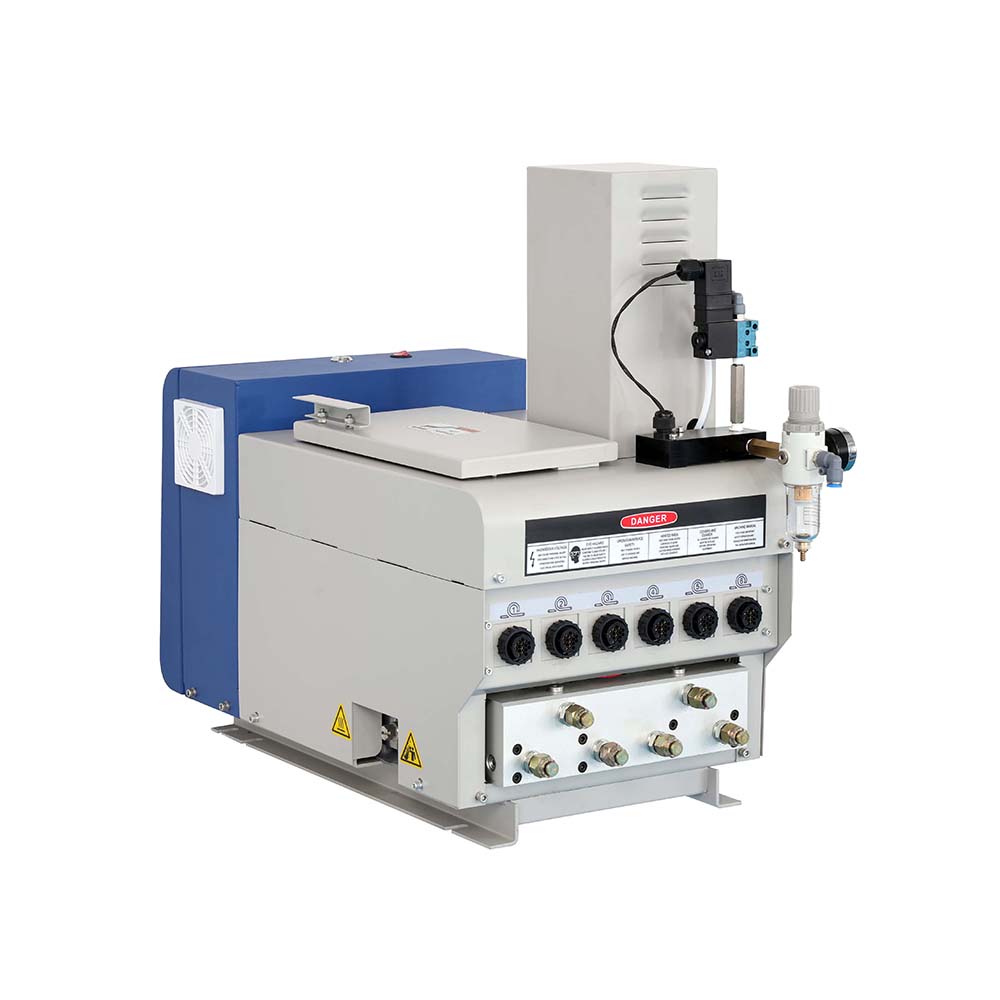

● Series apply 2/4/6 hose connections
● Compact structure with optional automatic feeding system
● Touch screen for real-time temperature and fault monitoring
● Modular quick-release design reduces maintenance time
