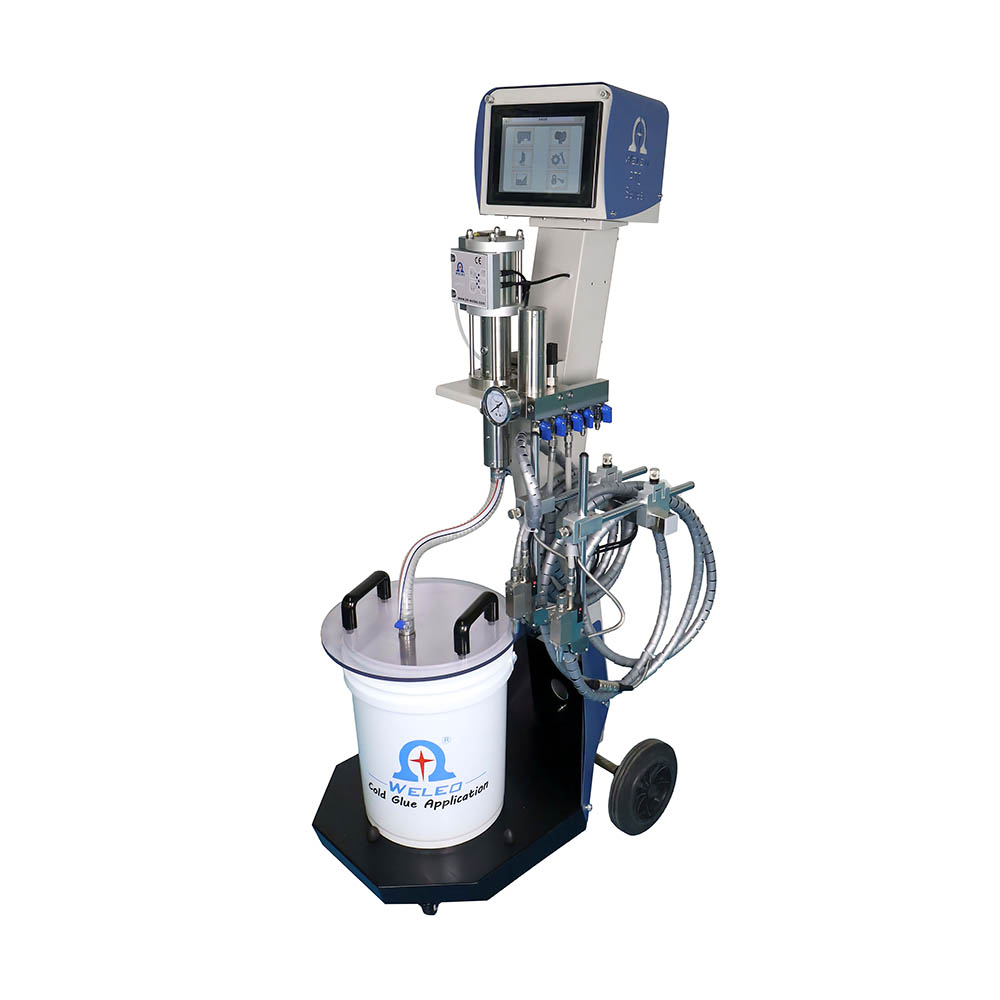

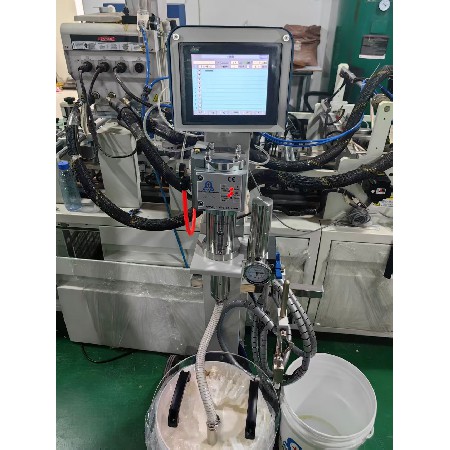

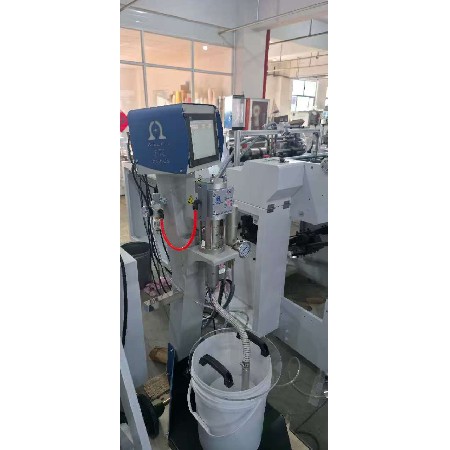

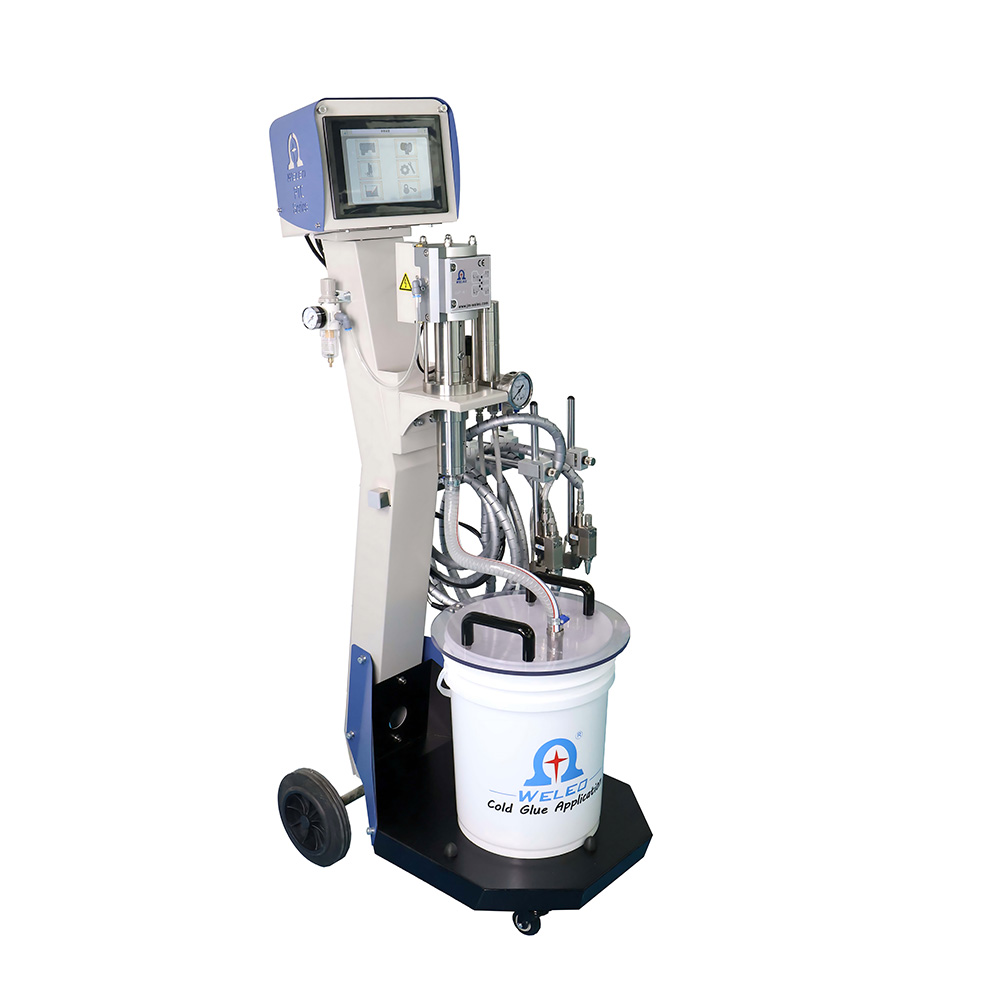

CGP Cold Gluing Pump Dispensing System

2026-03-20 18

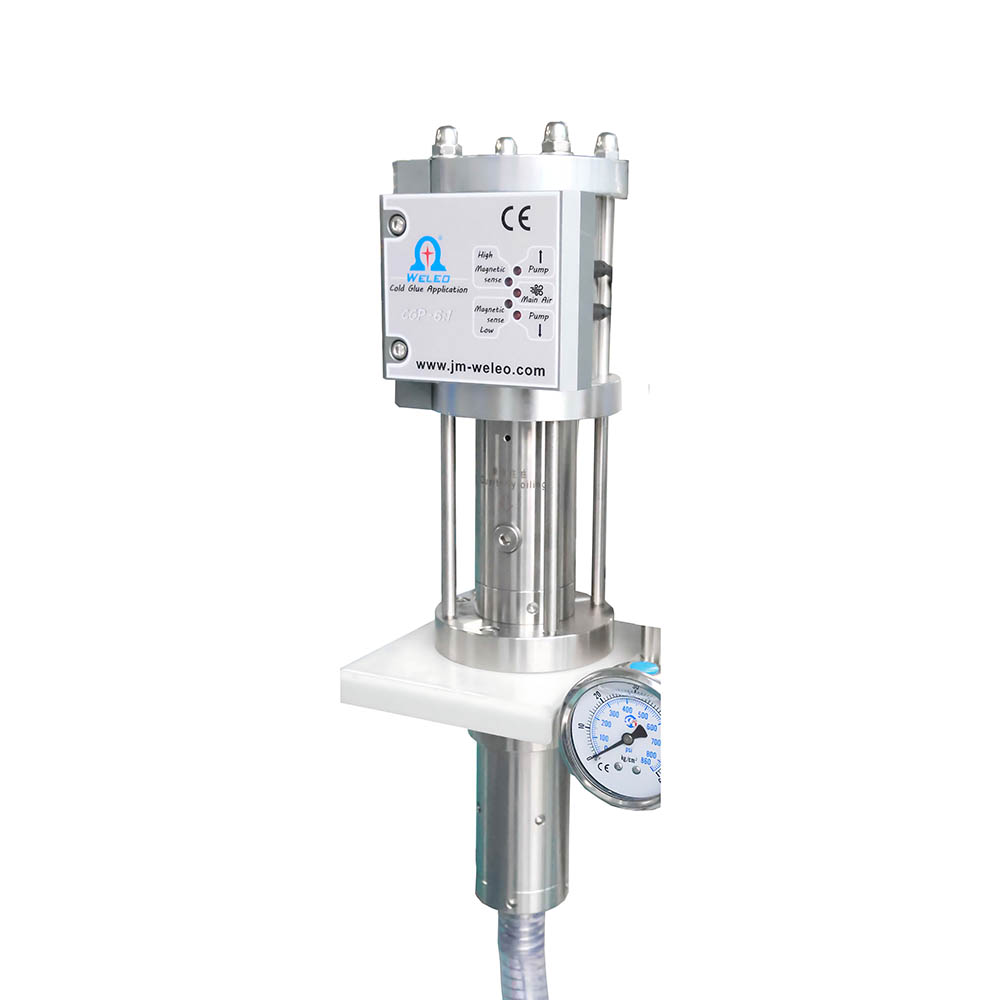

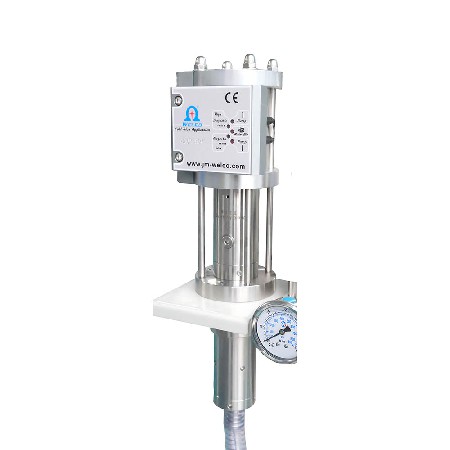

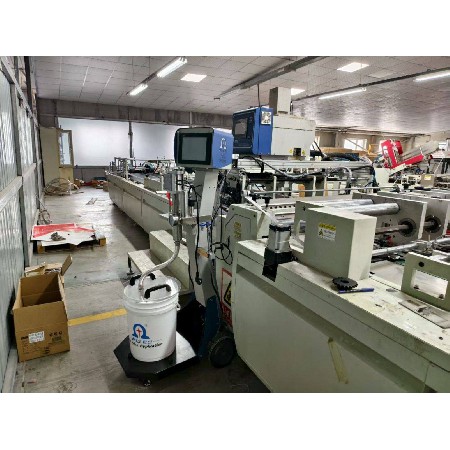

Our cold glue dispensing system features an all-stainless steel piston pump with electronic commutation. The pressure transducer enables real-time pressure adjustment via control panel. It achieves precise thread-like dispensing with encoder positioning (±0.1mm accuracy) at speeds up to 300m/min. The dual-filter design (pump & manifold) ensures clean glue flow. Ideal for carton sealing, box forming and product assembly, this durable system boosts packaging efficiency with intelligent control.

Specifications
Melter ModeCGP-6
Tank Pail20kg
Number of Hose / Gun5 or 10
Size of HMI Screen8" inch
Number of Patten Control5 or 10
Working Viscosity5000mPas
Pump Ratio6:1
Electrical Voltage (Standard)220 VAC 1PH 50-60Hz
Net Weight41kg
Ambient Temperature70°C


Features

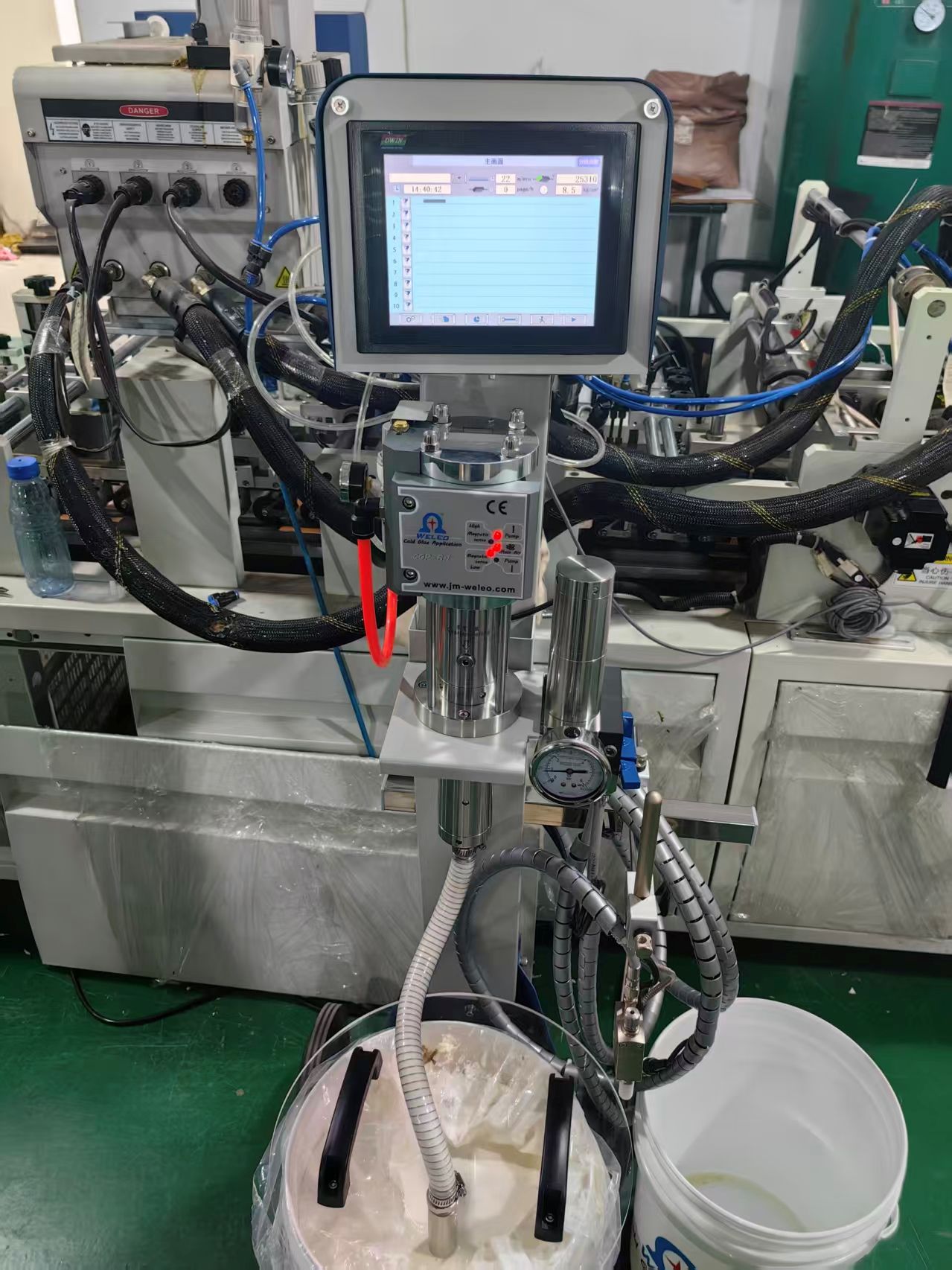

● 8” HMI high resolution touch screen

● 5 or 10 Channel Spray Pattren Control

● Glue Spraying Pressure Control

● Glue Pressure Gague

● Large Screen Spray Gun Filter Tube Glue

● Pressure Transducer

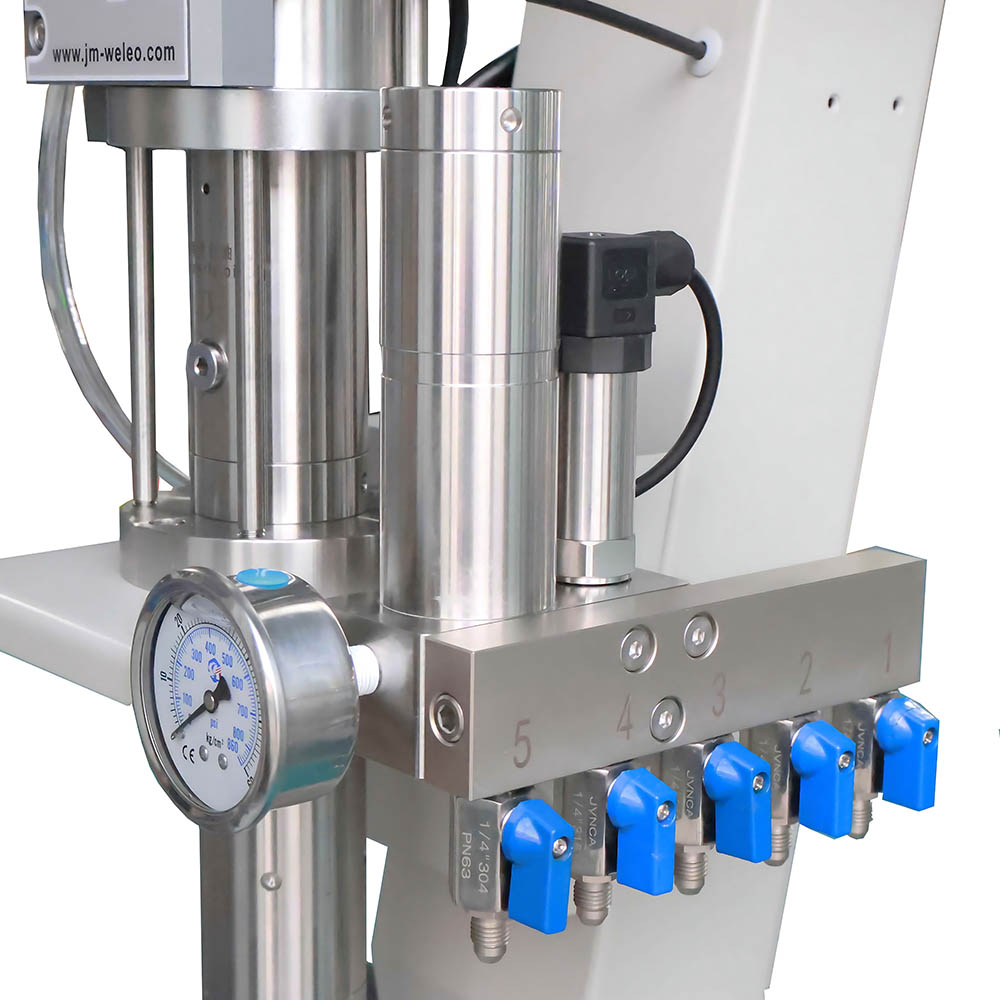

● Single Ball Valve Control Each Gun on/off

● Piston Pump Ratio 6:1

● Electronic Magnetic Stroke

● Main Air Regulator Filter Kit

● Easy Maintenance Design

● LED Light Indicator Pump Sate

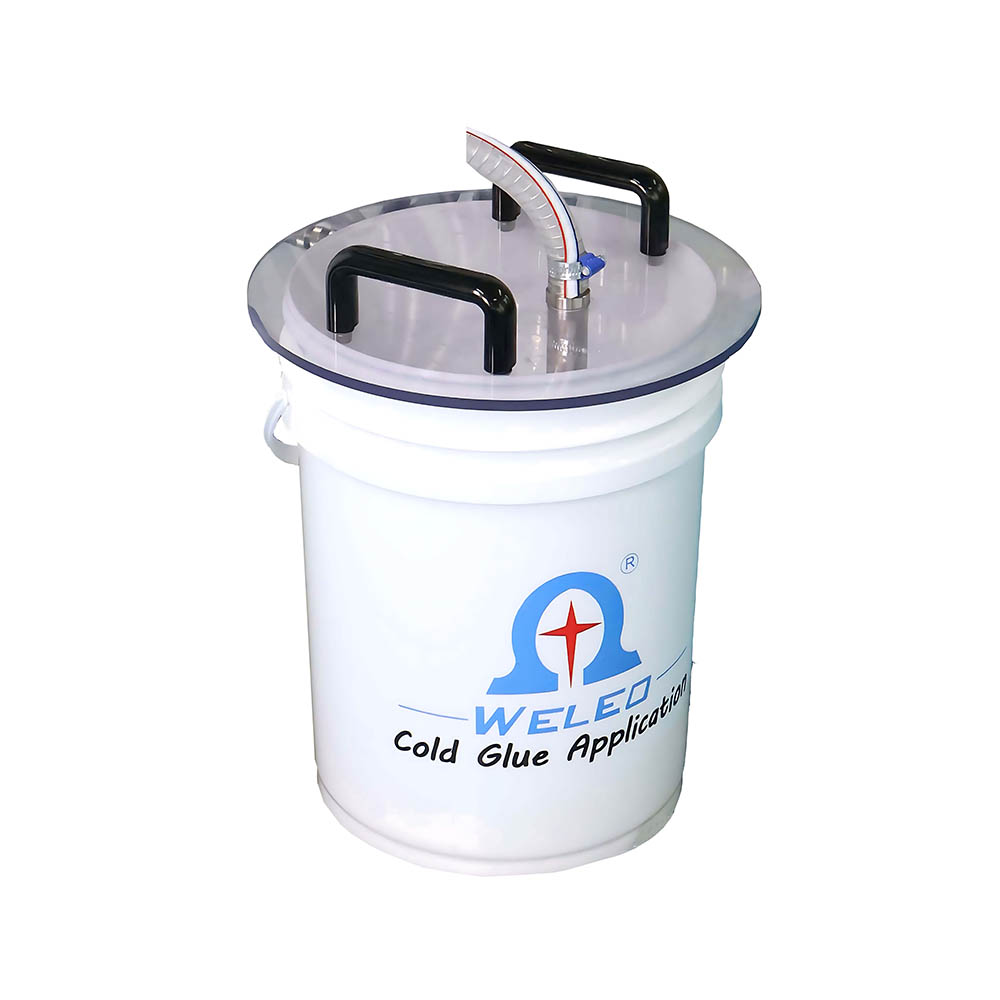

● 20 Liters Feed Pail

● Suction Pipe with Check Valve

● Pipe with Primary Filter Screen
