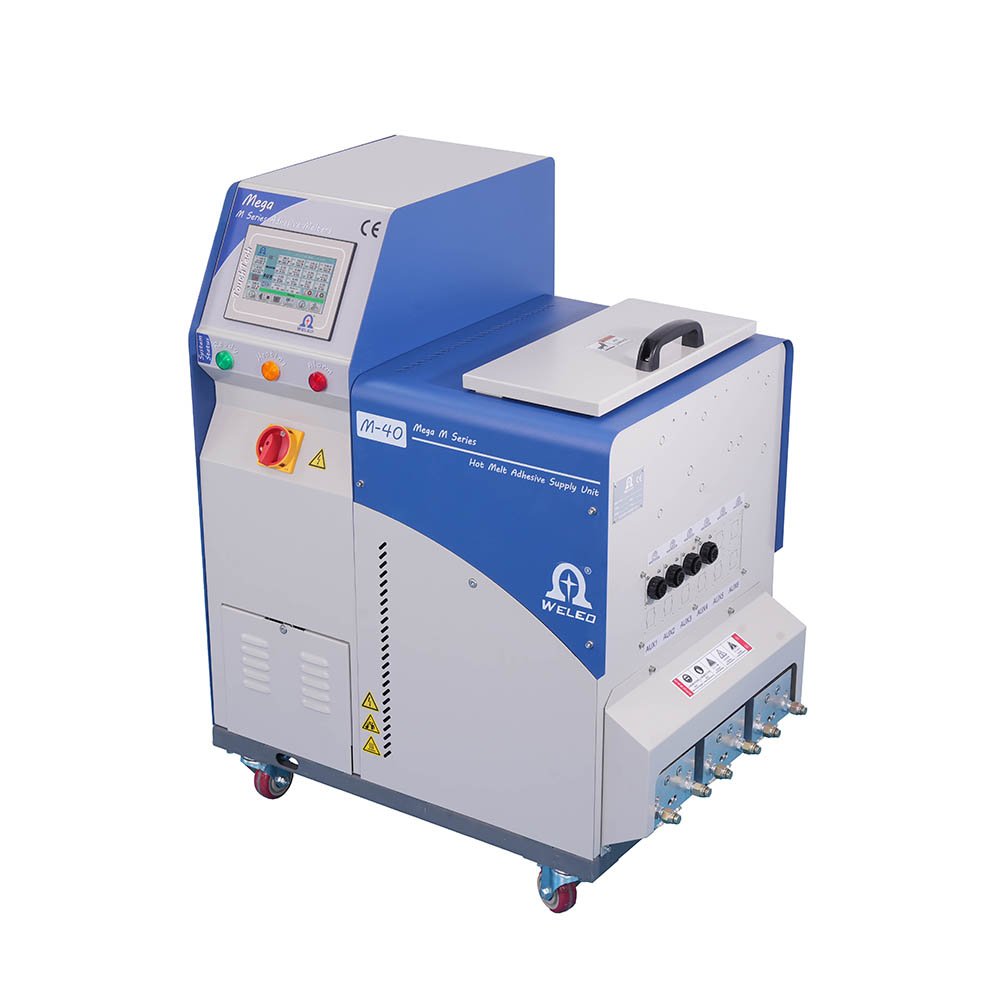

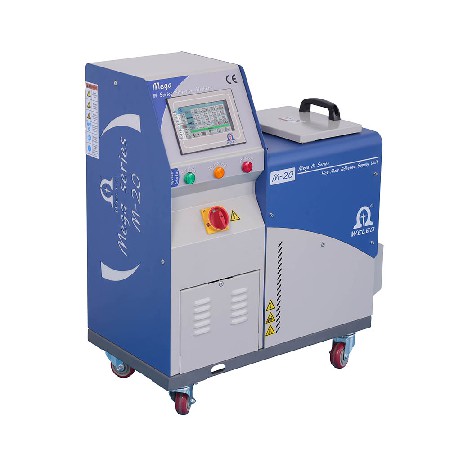

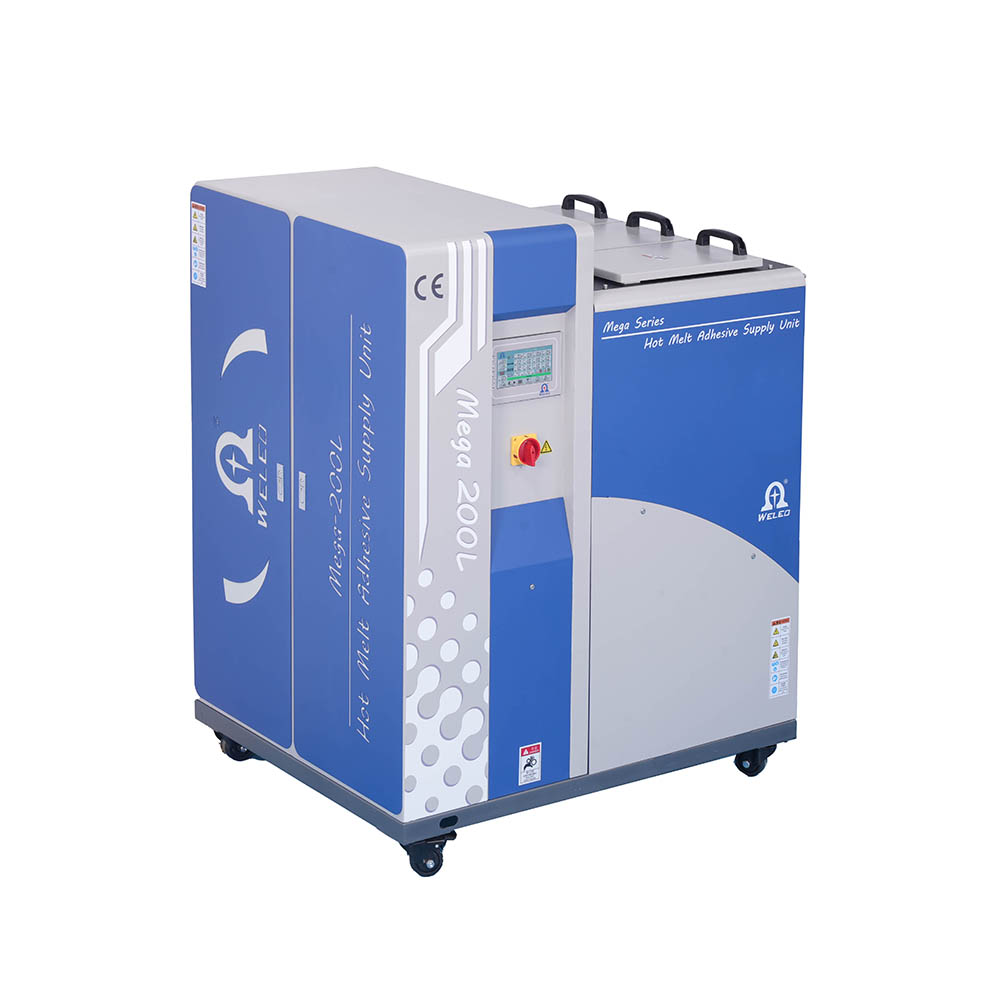

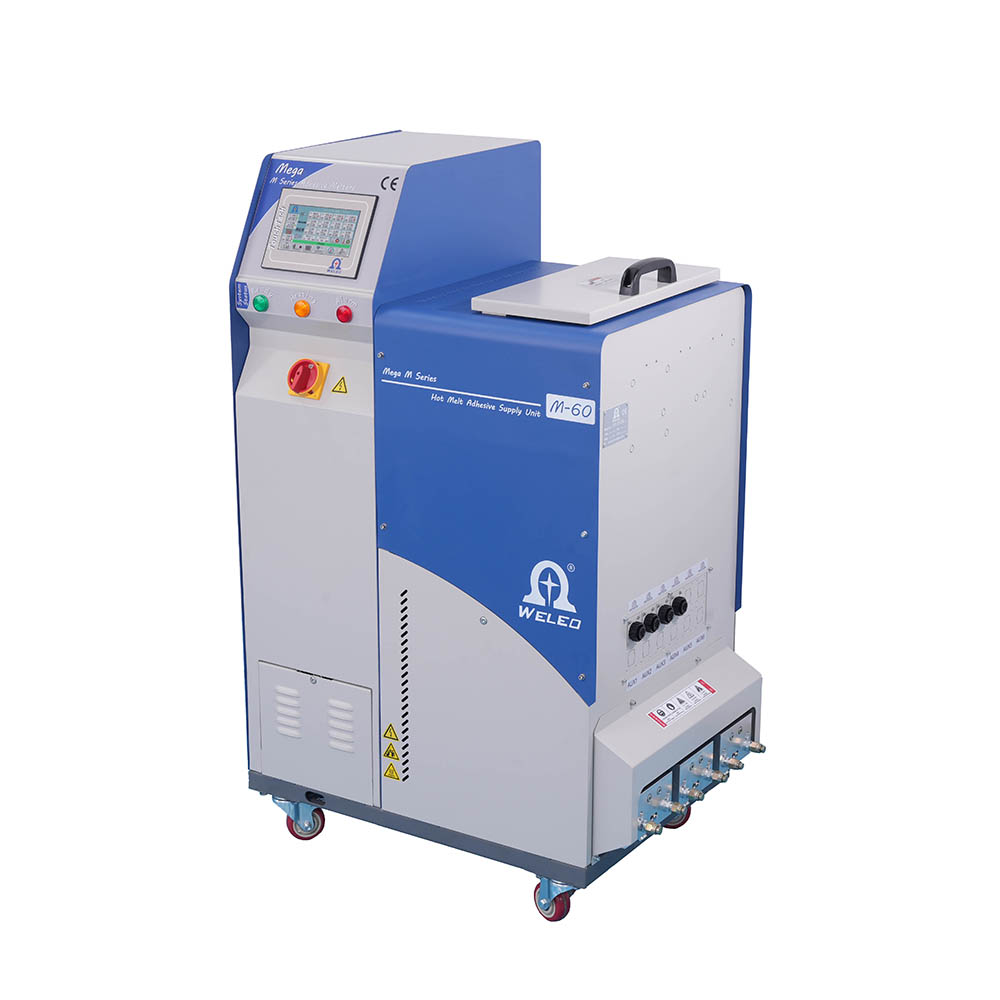

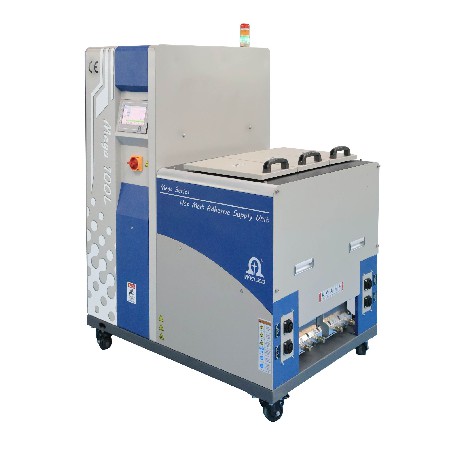

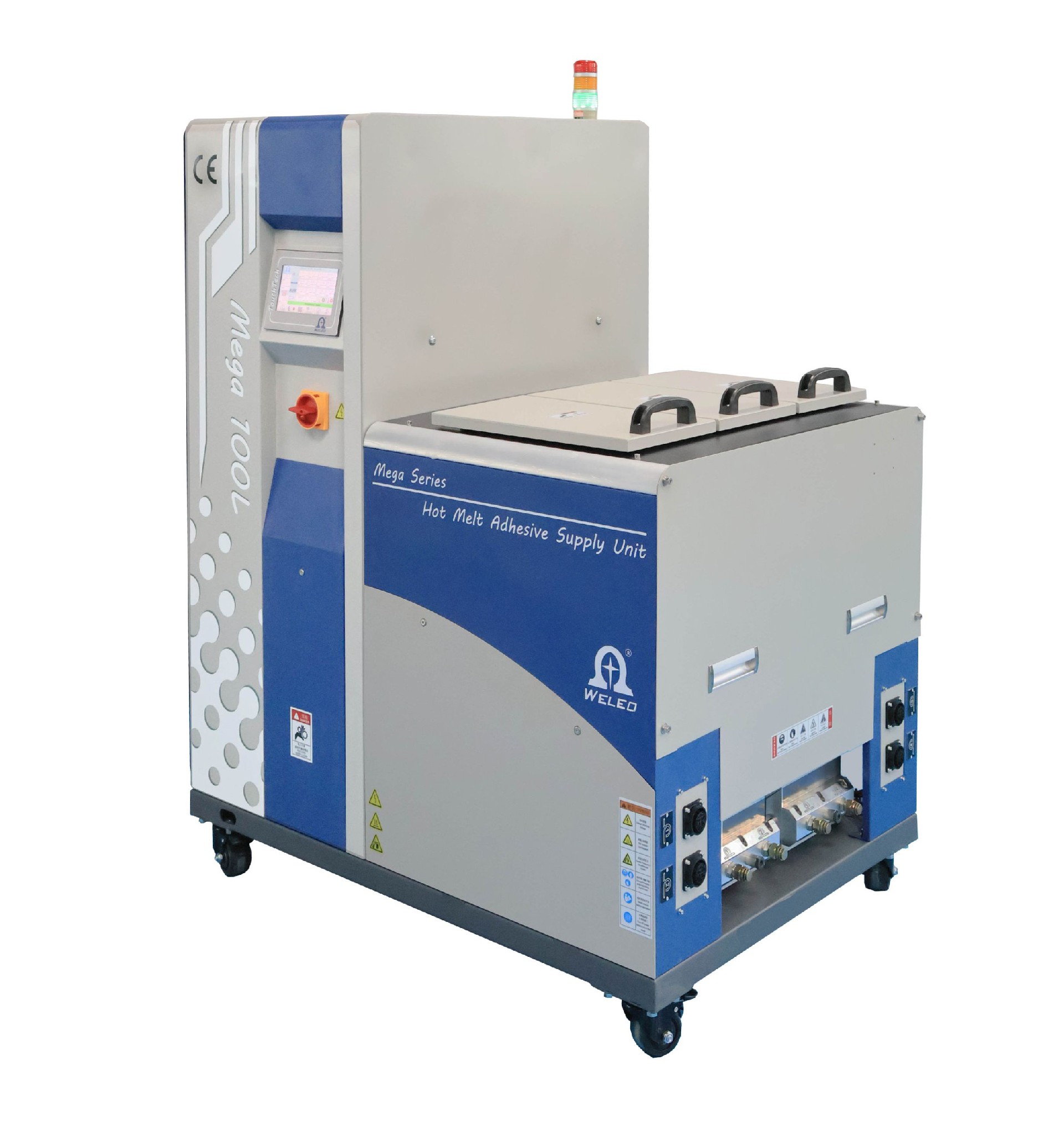

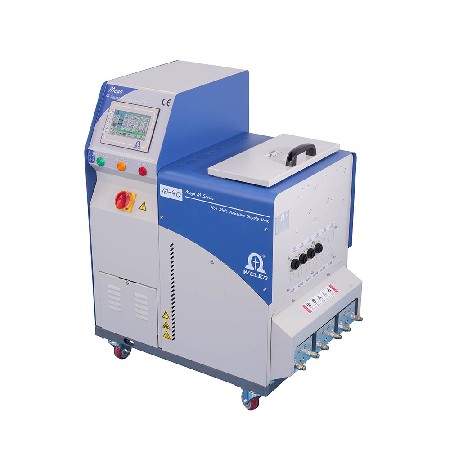

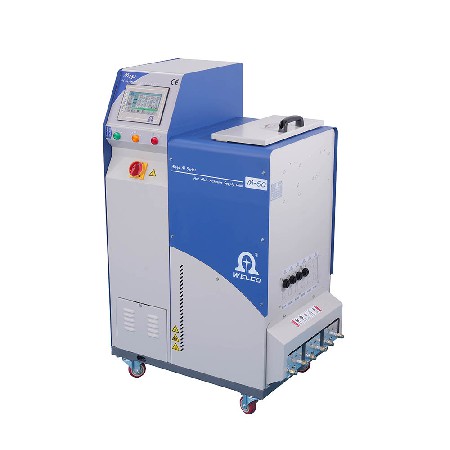

The Mega series hot melt adhesive machine is a premium device tailored for continuous production lines. It boasts a range of melt tank capacities from 20kg to 200kg, suitable for various bonding needs. The machine can independently control up to 3 AC motors, showcasing robust control capabilities.
Equipped with a 7-inch HIM touchscreen "TouchTech" system, it ensures precise control over 6 heating hose and 6 auxiliary heating zones for uniform adhesive output. The double-layer progressive melting design of the melt tank enhances melting efficiency and uniformity. Additionally, the inner walls are coated with a high-temperature PTFE non-stick material to prevent carbonization and nozzle blockage, extending equipment lifespan and reducing maintenance costs. This machine is ideal for any hot melt adhesive bonding application, meeting high standards of technology, quality, and reliability.
| Melter Model | M20 | M40 | M60 | M100 | M200 |
| Tank Capacity | 20kg | 40kg | 60kg | 100kg | 200kg |
| Melt Rate (per hour) (Dependent on adhesive ) | 24 kg/hr | 33 kg/hr | 42 kg/hr | 68 kg/hr | 140 kg/hr |
| Pre-Melt Grid (Optional) | N/A | 1 Grid | 1-2 Grid | 1 Grid | 1-2 Grid |
| Level Sensor (opotional) | Yes | ||||
| Max. Number of Hose / Head | 4H/4G | 6H/6G | 6H/6G | 4H/4G | 4H/4G |
| Max. Wattage per Hose/Head | |||||
| 2Hose / 2Head | 4000W | 4000W | 4000W | 4000W | 4000W |
| 4Hose / 4Head | 8000W | 8000W | 8000W | 8000W | 8000W |
| 6Hose / 6Head | N/A | 12KW | 12KW | N/A | N/A |
| Size of HMI Touch Screen | 7" inch | ||||
| Type of Sensor | Platinum PT100 < Nickel RTD Ni120 / FE-KO / NTC > (Option) | ||||
| Number of Patten Control | 2/4 | ||||
| Working Viscosity (Centipoise) | 1000-50000 cps | ||||
| OperatingTemperature | 38-210°C | ||||
| Gear Pump Standard | 1.5~3.2~4.5 cc/rev | 1.5~3.2~4.5 cc/rev | 1.5~3.2~4.5 cc/rev | 8-70 cc/rev | 8-70 cc/rev |
| Gear Pump / Drives | 1-2 Motor | 1-3 Motor | 1-3 Motor | 1-2 Motor | 1-2 Motor |
| Operating Glue Pressure | (68bar)1000psi | ||||
| Electrical Voltage (Standard) | 220 VAC 1PH 60Hz | 380 VAC 3PH+N 60Hz | |||
| Electrical Voltage (Option) | 380 VAC 3PH+N 60Hz | N/A | |||
| Net Weight | 110kg | 164kg | 177kg | 400kg | 420kg |
| Dimensions (L x W x H) | 785x400x900 | 805x540x1027 | 805x540x1171.5 | 1150x860x1651 | 1150x860x1651 |
| Ambient Temperature | -5-70°C | ||||
| Unit Wattage | 3.6KW | 7.6kw | 7.6kw | 8.8kw | 12.4kw |
● Mega series units user-friendly design with effortless operation
● Mega series Hopper capacity 20, 40, 60 ,100 and 200kg
● 1-3 AC motor with single or dual gear pump
● 0.16cc-15cc single & daul gear pump select
● 7" HMI high resolution color touchpad HMI interface
● Temperature sensor compatible with Pt100, Ni120, NTC or FE-KO
● 0-10V Gear pump auto key to line
● Standby Mode / Ready Delay / One key keep warm
● 7 Days Scheduler / Fault history
● Daul layer auxiliary Melt Grid selection
● Glue dispensing pattern conrtrol with compensate
● Adhesive level control selection
